Sprocket Selection Guide

Sprocket Basics & Online Questionnaire

Selected Value: 0
(inches)

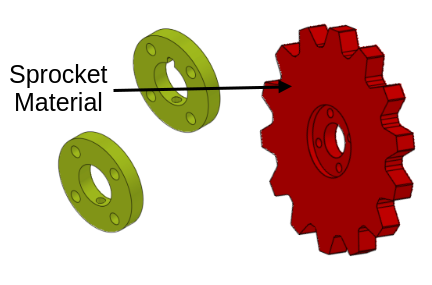

Sprocket Material

  • UHMW: Most common, corrosion-resistant
  • 304 SS: Higher strength and wear resistance
  • 316 SS: Better protection against chlorides and harsh chemicals

Chain Type

  • NH-78: Polymeric chain, corrosion-resistant
  • NCS-720: Polymeric composite chain
  • 6″ Pitch Roller Chain: Heavy-duty, long-lasting steel/SS chain

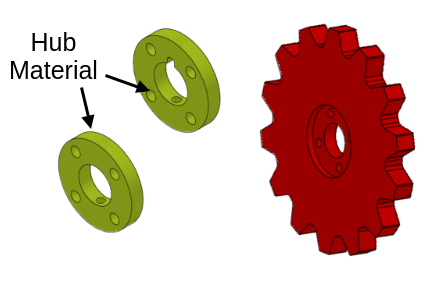

Hub Material

  • UHMW: corrosion-resistant
  • 304 SS: Higher strength and wear resistance
  • 316 SS: Better protection against chlorides and harsh chemicals

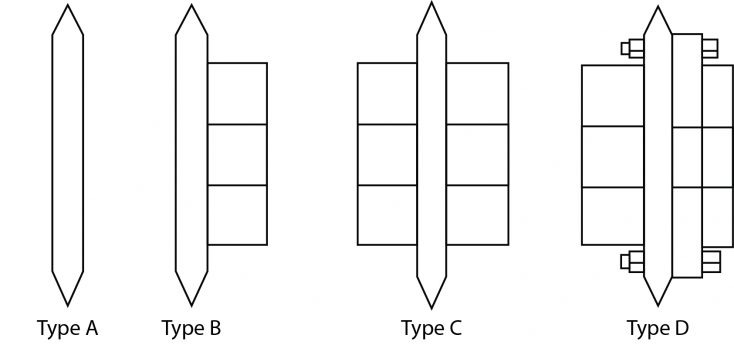

Hub Style

  • A Hub (Flat): No hub extension – when space is limited
  • B Hub (Single Hub): Hub extends on one side – additional shaft support
  • C Hub (Double Hub): Hub extends on both sides – maximum shaft support
  • D Hub (Detachable): Our Favorite! Removable hubs

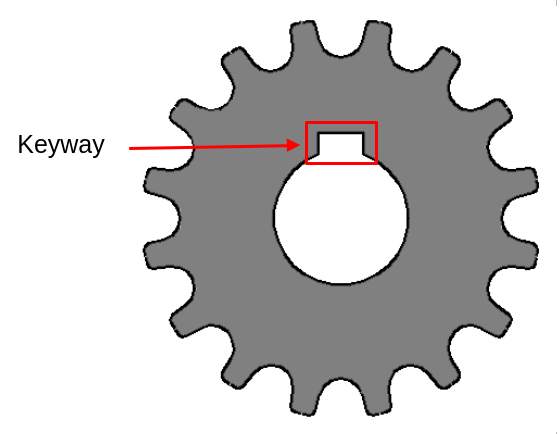

Keyway

Bore includes a machined slot to lock the sprocket to the shaft with a key

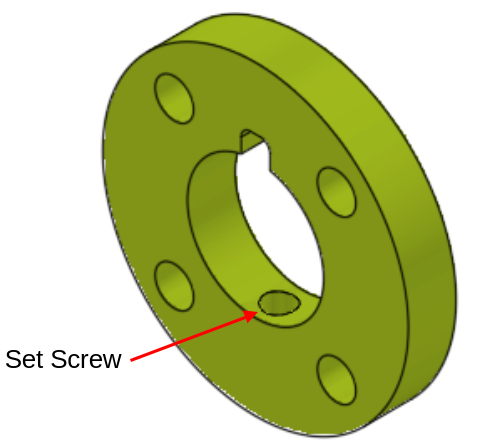

Set Screw

A screw installed in the sprocket hub that tightens against the shaft to help prevent movement or slipping.

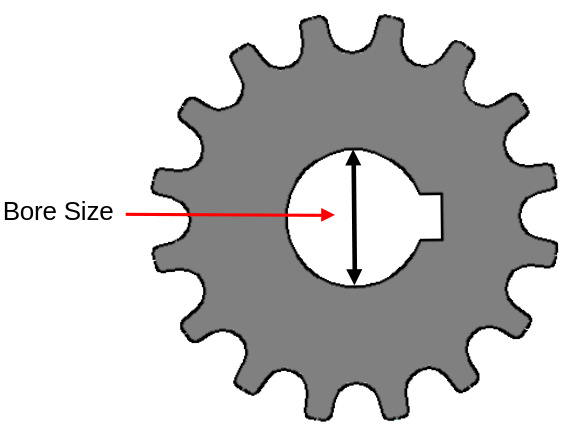

Shaft Diameter / Bore Size

Measured diameter of the shaft the sprocket will mount onto
Determines the bore size required for proper fit and torque transfer

Tooth Count
